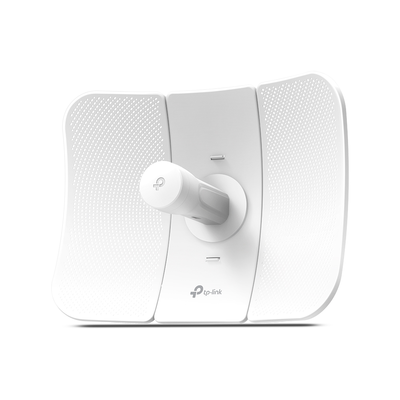

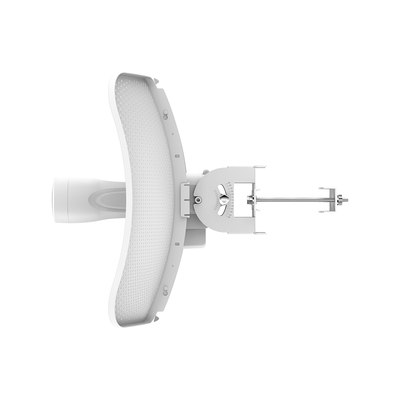

CPE de Exterior de 5 GHz a 300Mbps, Antena direccional de 23dBi, potencia de 27 dBm, PoE pasivo
Precio
$ 1,661.76
Hacer una pregunta
Compartir
No se pudo cargar la disponibilidad de pickup
Descripción
CARACTERÍSTICAS DE HARDWARE
- Procesador: Qualcomm 560MHz CPU, MIPS 74Kc
- Memoria: 64MB DDR2 RAM, 8MB Flash
-
Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button -
Fuente de Alimentación: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC - Dimensiones (W X D X H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- Dimensiones: 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
- Ganancia de Antena: 23dBi
- Cobertura de Antena: 9°(Azimuth), 7°(Elevation)
-
Protección: 15KV ESD Protection
6KV Lightning Protection -
Cercado: Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
CARACTERÍSTICAS INALÁMBRICAS
- Estándares Inalámbricos: IEEE 802.11a/n
- Protocolo Propietario: TDMA Mode (with Pharos MAXtream enabled)
-
Velocidades Inalámbricas: Up to 300Mbps (40MHz, Dynamic)
Up to 144.4Mbps (20MHz, Dynamic)
Up to 72.2Mbps (10MHz, Dynamic)
Up to 36.1Mbps (5MHz, Dynamic) - Frecuencia: 5.15~5.85GHz
- Potencia de Transmision: Max. 27dBm (Adjustable power by 1dBm)
CARACTERÍSTICAS DE SOFTWARE
-
Configuracion De Red: WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding -
Configuraciones Inalámbricas: Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia -
Administración: Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server -
Herramientas de sistema: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute -
Optimizaciones a Nivel de Sistema: Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
- Dimensions(W x D x H): 85.8×43.9×29.7 mm
-
Interfaces: 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data) - Botón: Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC, 50/60Hz
-
Output: 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) - Eficiencia: >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTROS
- Certificacion: CE, FCC, RoHS, IP65
-
Contenidos del Paquete: Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide -
Requisitos del Sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. -
Ambiente: Operating Temperature: -40°C~70°C (-40°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Características Clave
- CPU Qualcomm 560MHz para procesamiento eficiente
- Memoria RAM 64MB DDR2 para mejor rendimiento
- Antena direccional 23dBi con cobertura 9°/7°
- Protección ESD 15kV y rayos 6kV
- Diseño IP65 resistente agua y polvo
- Potencia transmisión 27dBm ajustable 1dBm
